Nested Formulas

You can nest formulas within other formulas.

Uses

• When the result of a property is dependent on the result of another property
• When the cost of a part is dependent on one or more variables
• If the property requires an “IF” function
• When the results of the “IF” function need to be simple to adjust

Example

In this example, we demonstrate how we can make the cost of a 2x4 change depending on the length of the board.

Step 1:

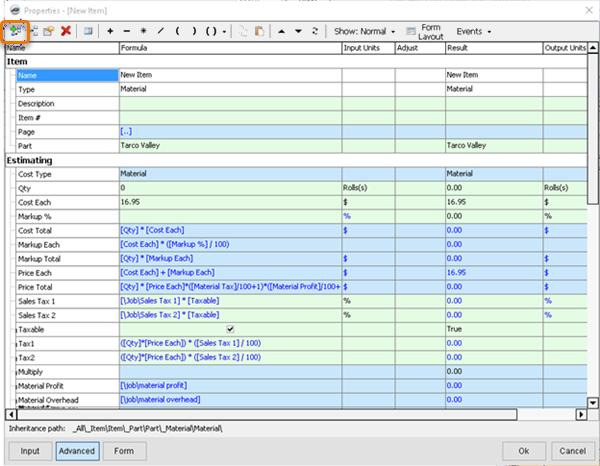

Create the primary property by clicking on the “Add Property” button:

Step 2:

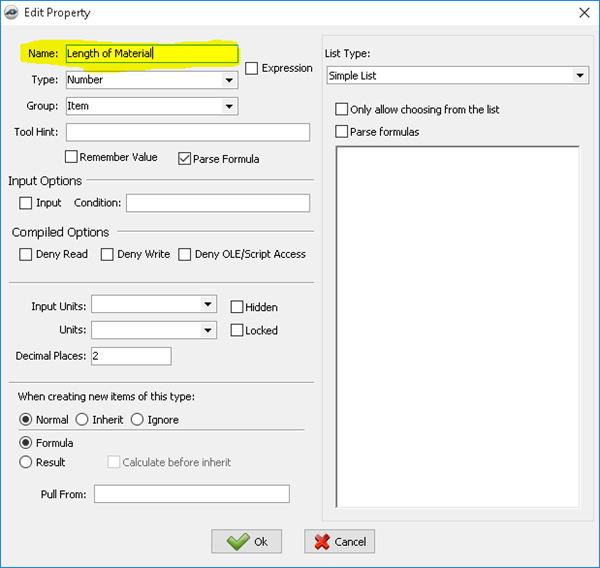

Name the primary property and then click “Okay”:

Step 3:

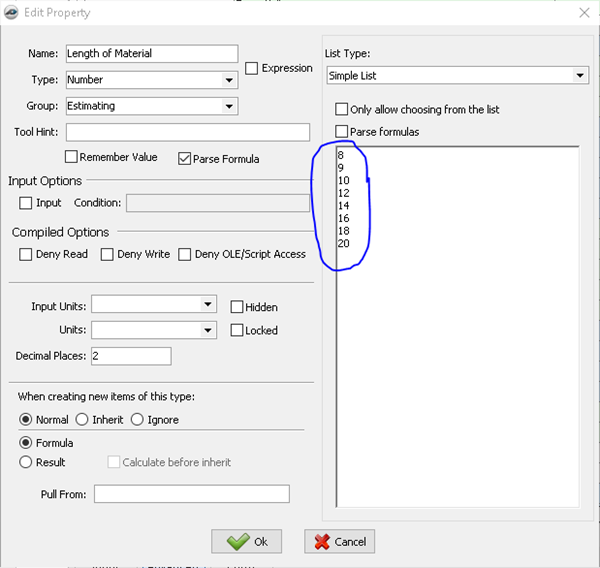

Add a list of common lengths (optional but recommended):

Step 4:

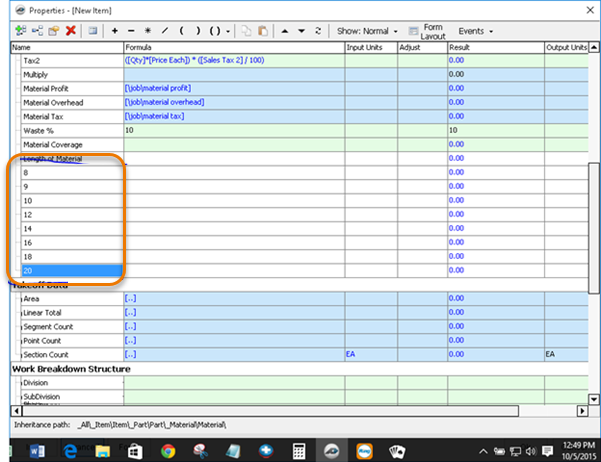

Add a property for each selection in the “Length of Material” property’s list:

Step 5:

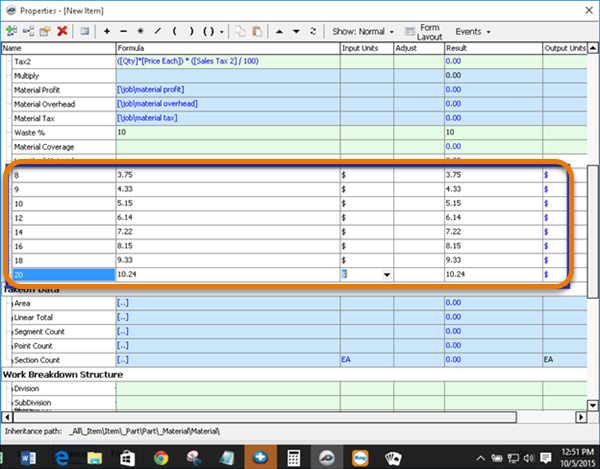

Now input the cost of each length of 2x4 on the corresponding properties:

Step 6:

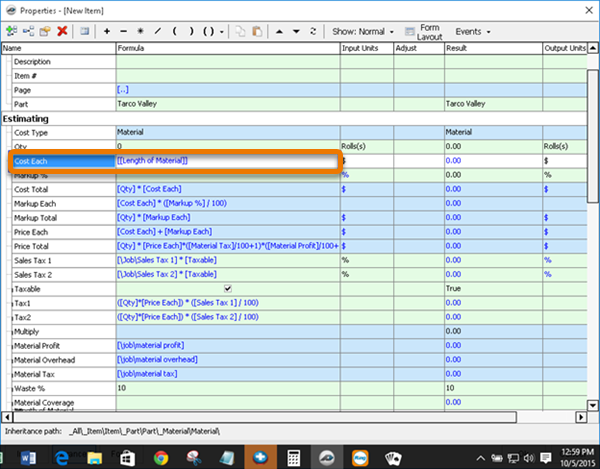

Locate the “Cost Each” property and input [[Length of Material]] into the formula:

This will cause the “Cost Each” property to perform a double search function. It will search for the property named “Length of Material” and then search for a property that matches the result of the “Length of Material” property. Meaning, if the result is “8” then it will search for a property named “8” and return the result of this property to the “Cost Each” property.

Step 7:

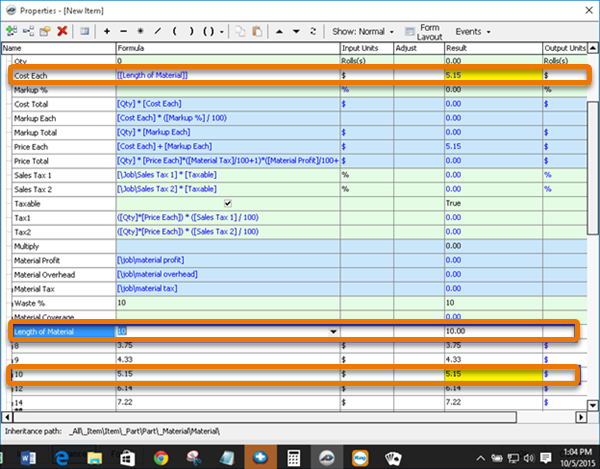

Test the function by selecting a length from the “Length of Material” property:

Ensure that the length you choose returns the correct value to the “Cost Each” property.

If the formula does not work, try “Right-Clicking” on the “Cost Each” property and clicking “Recalculate”.

If it still does not work, check your names for extra spaces or misspellings.
