PlanSwift permits you to open multiple pages, each on a different tab, close the tabbed pages, and undock tabbed pages so that different pages may be displayed on multiple monitors.

To open a page in a new tab:

Pages, Bookmarks Toolbar

There are also buttons at the top of the Pages, Bookmarks panel that make it easy to open Pages in a new tab or window

•  - Opens the selected Page in a new Takeoff tab (within the current window)
•  - Opens the selected Page in a new Takeoff window

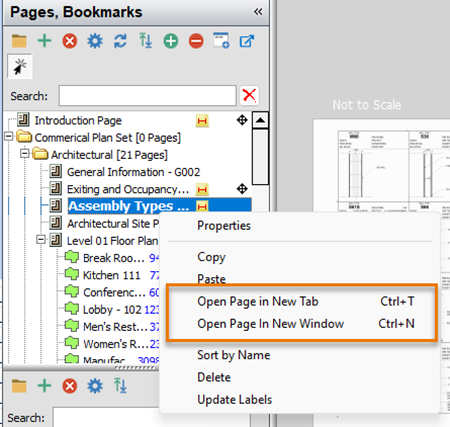

Right-Click

• Right-click on any page (in this case the Page named A1.1 Community Center) in the Sample Takeoff Project's Pages panel

The A1.1 Community Center now appears on two separate tabs. Clicking on either one of the tabs makes the clicked-on tab's page active. Clicking on a different page in the Pages, s window opens the selected page in the active tab. Takeoffs may be performed on any active tabbed page.

To Close a Page Tab or Window

Close One Tab

• Click the small grey “X” next to the Page name in the tab

Close More than One Tab

• Right-click on the tab and select one of the Close options:
  • Close Tab (Closes the Tab on which the right-click occurred)
  • Close All Other Tabs (Closes all Tabs except for the Tab on which the right-click occurred)
  • Close All Other Tabs & Windows (Closes all Tabs and undocked Windows except for the Tab on which the right-click occurred)

Adjusting the Page or Folder Order

Undocking Page Tabs, Program Tabs, and Side Bars (Panels)
